| SAVIOR
AUTO PUMP CONTROLLER |
| Save
Motor, Save Water, Save Money. |
| Fully
Automatic |
SAVIOR
Automatic water pump controller cum indicator takes the
responsibility of a man who switching On/Off the motor.
SAVIOR Automatic water pump controller cum indicator saves
water, protects motor from dry run and reduces electricity
bill.
New
Generation Auto Pump Controller with MCU based intelligent
control system. It takes care of overflows of water from
overhead water tank and save extra amount of electricity
charges due to unnecessarily rotation of motor and gives
advantage from save and safety point of view. |
| Savior
Auto Pump Controller is an electronic device which operates
the pump automatically when water is required for the overhead
tank and after filling up the overhead tank the pump will
automatically stop, No manual attention is required. |
| Savior
Auto Pump Controller can be installed for any type of pump
either it is submersible, mono block or any other type. It
is applicable for upto 3HP single phase motor load. |
The
Savior Auto Pump Controller has been certified by M.S.M.E,
(A Govt. of India Test Laboratory) and a product of An ISO
Certified Company and A Govt. Regd. S.S.I. Unit. |
| Features |
 |
 |
 |
No
manual intervention required, so Fully Automatic. |
|
Save
water, Save Money & Prevent Wastage of Valuable
Water. |
|
Save
extra amount of electricity charges due to unnecessarily
rotation of motor, so you are Saving Money. |
|
Protect
your Motor from Dry Run. |
|
Low
cost and it is absolutely affordable for all. |
|
Maintenance
free |
|
Easy
Installation |
|
Environmental
friendly |
| Different
Module of Switches / Fuses |
|
Auto
/ Manual Mode Switch |
|
Power
On / Off Switch |
|
Timer
Switch |
|
Fuse |
|
|
| Specification
/ Technical |
| Capacity |
Single Phase and 3 Phase Motor |
| Rated
Voltage |
180V
to 250V AC |
| Rated
Frequency |
50Hz |
| Power
Consumption |
0.01 Amps |
| Relay |
30
Amps |
| Operation
Mode |
Auto
/ Manual |
|
| Certifications |
|

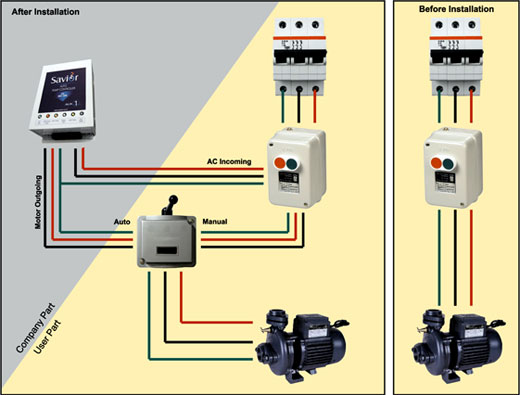

| Installation
& User Guide of Savior Auto Pump Controller |
 |
SAVIOR
Auto Pump Controller
Auto switches-off the motor for the following reasons : |
 |
Water reaches prefixed Maximum/Upper level in the overhead
tank |
|
Water
in the sump goes below foot valve or as prefixed lower
level |
|
Water
does not flow to the overhead tank for prefixed time
duration |
|
The
switch is in off position |
|
Fuse
blown off |
|
| Auto
switches-on the motor for the following reasons : |
|
Water
in overhead tank falls to prefixed lower level (eg.
below 75%, 50%, 25% as adjusted) |
|
The
switch is in manual position |
|

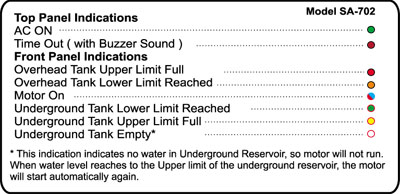

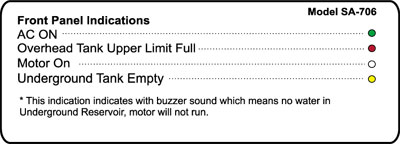

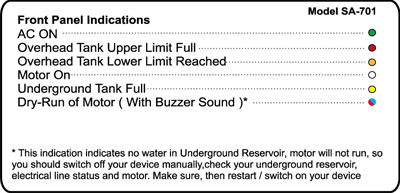

| Different
Indications |
 |
|
 |
