LPG DETECTOR
Model No. SA-901
ZOOM IMAGE
DOWNLOAD PDF
EMAIL A FRIEND

SAVIOR LPG DETECTOR
New Generation LPG Detector & Preventer with MCU based intelligent control system. It takes care of your Family and Home from LPG Leakage and gives you the best advantage from safety point of view.
Features

Accurate and Fast Response
Reliable and Long life performance
Maintenance free
Easy Installation
Environmental friendly
Save and Danger Zone Leakage Indication
Visual Yellow and Red LED indication
Audio Alarm
Audio High dB Hooter Alarm
Auto Exhaust Fan ON by sealed electromagnetic switch
Rechargeable Battery Backup During power cut off
Auto Reset
Specification / Technical
Operating Voltage 90V­230V,AC
power Consumption <4W
Rated Frequency 50Hz
Operating Temperature ­10°C to 50°C (Oconcentration21%) (Standard condition)
Operating Humidity <95%RH (Oconcentration21%) (Standard condition)
Response Time <10 Seconds
Reset Automatic, LPG concentrations below the safe label
Leakage on Save Zone / Danger I Indication and prevention AudioAlarm =70 dB
Visual Yellow LED indication.
Auto Exhaust Fan ON by sealed electromagnetic switch
Leakage on Danger Zone/ Danger II Leakage on Indication and prevention Visual Red LED indication.
Audio High dB Hooter Alarm
Rechargeable Battery Backup During power Cut off(optional) 12V
Certifications

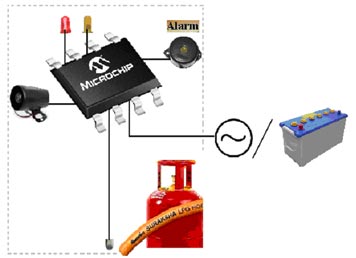

How Savior LPG Detector Works

To activate the Savior LPG Detector connects it to 230V AC/12V DC and switch on the activation switch. If there is leakage of LPG on Save Zone/ Danger- I Zone Savior LPG Detector reaches a set operating point it sends a signal to programmed microchip, then microchip sends a signal to the Audio Alarm 70 dB with Yellow LED indication and as prevention Automatic Exhaust Fan will ON by sealed electromagnetic switch.

If there is leakage of LPG on Danger Zone/Danger-II Zone Savior LPG Detector reaches a set operating point it sends a signal to programmed microchip, then microchip sends a signal to the Audio High dB Hooter Alarm with Visual Red LED indication
The alarm sounds until the situation becomes normal/ by switch off the activation switch.
